Retrieval of a few parameters with Nested Sampling
This example uses nested sampling. In archNEMESIS, nested sampling is done through the pyMultiNest package, which itself is a wrapper around the MultiNest code. Detailed instructions on installation can be found here: http://johannesbuchner.github.io/PyMultiNest/install.html
[1]:
from archnemesis import *
Let’s load in an example Neptune setup.
[2]:
runname = 'neptune'
#Reading the input files
Atmosphere,Measurement,Spectroscopy,Scatter,Stellar,Surface,CIA,Layer,Variables,Retrieval = read_input_files(runname)
[3]:

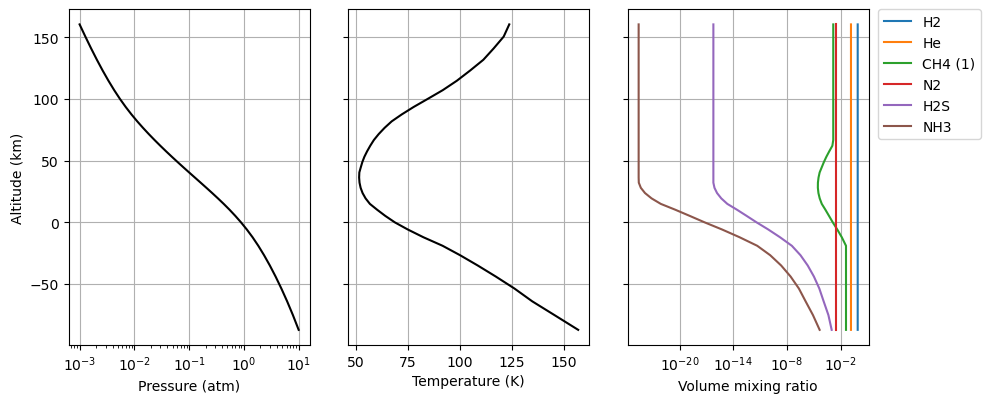

Atmosphere.plot_Atm()
Atmosphere.plot_Dust()
Atmosphere.DUST_UNITS_FLAG = [-1]*Atmosphere.DUST.shape[1]
We’ll generate a spectrum, add some noise to it, and save it to our spx file. We’re only using a small region of the spectrum for speed.
[4]:
%%time
ForwardModel = ForwardModel_0(runname=runname, Atmosphere=Atmosphere,Surface=Surface,Measurement=Measurement,Spectroscopy=Spectroscopy,Stellar=Stellar,Scatter=Scatter,CIA=CIA,Layer=Layer,Variables=Variables)
SPECONV = ForwardModel.nemesisfm()
Normalisation of phase function should be 1.0
Minimum integral of phase function is 1.0024492587068203
Maximum integral of phase function is 1.0029856636186842
CIRSrad :: Aerosol optical depths at 1.8490000175515888 :: [0.37875526 0. ]
CIRSrad :: Performing multiple scattering calculation
CIRSrad :: NF = 6 ; NMU = 5 ; NPHI = 100
CPU times: user 16.4 s, sys: 431 ms, total: 16.8 s
Wall time: 16.7 s
[5]:
new_spectrum = SPECONV * np.random.normal(1,0.02,SPECONV.shape)
new_spectrum_error = new_spectrum*0.02
Measurement.MEAS[:,0] = new_spectrum
Measurement.ERRMEAS[:,0] = new_spectrum_error
#Not actually saving, so saved nested sampling results are still valid
# Measurement.write_spx()
Now, let’s reload, with our new slightly noisy spectrum. We’re keeping the apr file the same. This means that if we were running optimal estimation, we would start at the optimal point and the retrieval would end quickly. However, because nested sampling draws randomly from the prior distribution, it will still fully explore the space defined in the apr file.
[6]:
Atmosphere,Measurement,Spectroscopy,Scatter,Stellar,Surface,CIA,Layer,Variables,Retrieval = read_input_files(runname)
[19]:

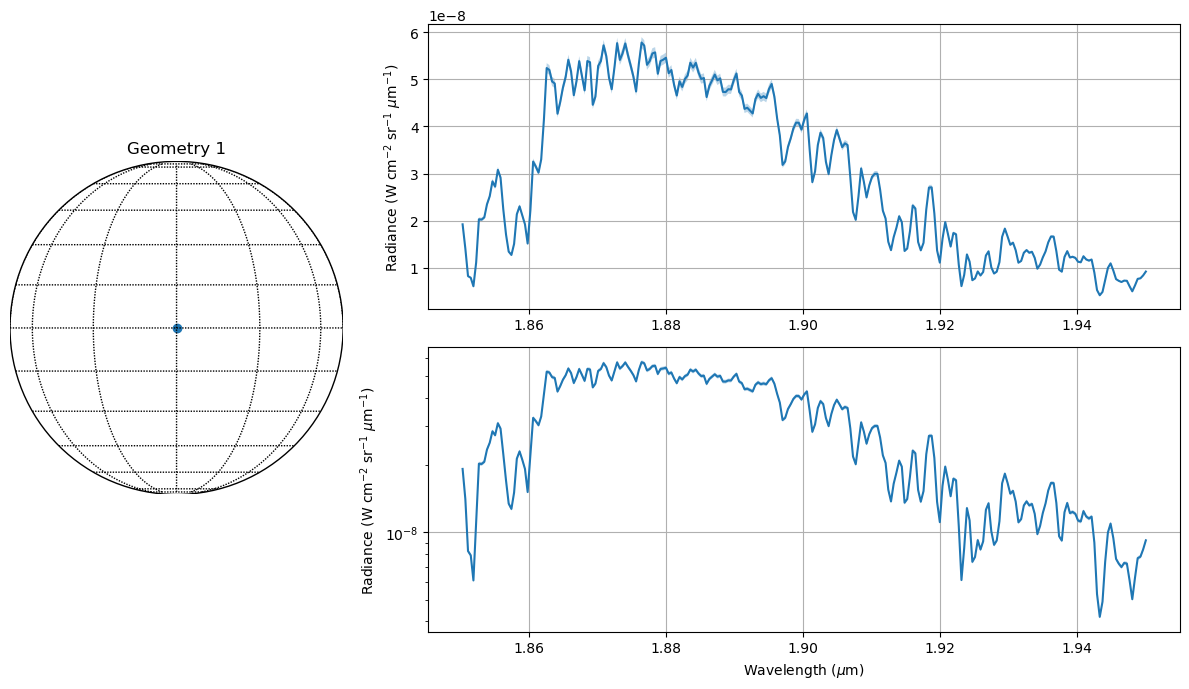

Measurement.plot_nadir()
Now let’s run our nested sampling. This would usually take a long time (~40 minutes for me), but this example folder already contains the results from a previous run, so we can just investigate the output.
[8]:
import subprocess
legacy_files=True
retrieval_method=1 #Nested Sampling
NCores=30
subprocess.run(["mpiexec", "-np", str(NCores), "python", "-c",
f"import archnemesis as ans; ans.Retrievals.retrieval_nemesis('{runname}', legacy_files={legacy_files}, retrieval_method={retrieval_method}, NCores={NCores})"])
*****************************************************
MultiNest v3.10
