Exoplanets: direct imaging
In this example, we show how archNEMESIS can be used to construct input files and calculate forward models useful for exoplanets. Here, we show an example of how to initialise all the classes from scratch, so that users can adapt the notebook according to their own needs. In this example, we are going to model a spectrum simulating the direct imaging of an exoplanet (i.e., disc-averaged spectrum). The planet is assumed not to have aerosols or surface, but this can be easily adapted to include these features.
[1]:
import archnemesis as ans
import numpy as np
import matplotlib.pyplot as plt
1. Creating the input files
[2]:
runname = "exoplanet"
Defining planet characteristics
[3]:
# Astronomical constants
AU = 1.495978707e+11 # m astronomical unit
R_SUN = 6.95700e8 # m solar radius
R_JUP = 6.9911e7 # m Jupiter radius
R_JUP_E = 7.1492e7 # m nominal equatorial Jupiter radius
M_SUN = 1.98847542e+30 # kg solar mass
M_JUP = 1.898e27 # kg Jupiter mass
R_EAR_E = 6.3781e6 # m Earth radius
M_EAR = 5.9722e24 # kg Earth mass
G = 6.6743e-11 # m3 kg-1 s-2 Gravitational constant
[4]:
# L98-59 d
R_star = 0.303 * R_SUN # m M3V star, 80 day rotation period, >0.8 Gyr
M_plt = 1.94 * M_EAR # kg
R_plt = 1.521 * R_EAR_E # m
SMA = 0.0486 * AU # m
T_star = 3415.0 # K
g_plt = G * M_plt / R_plt**2
T_eq = T_star * (R_star/(2*SMA))**0.5
T_int = 200.0 # randomly set
1.1. Atmosphere
[5]:
Atmosphere = ans.Atmosphere_0()
Atmosphere.NP = 50 #Number of points in vertical profiles
Atmosphere.LATITUDE = 0. ; Atmosphere.LONGITUDE = 0.
Atmosphere.IPLANET = -1 #Custom planet
#Planetary parameters
Atmosphere.PLANET_MASS = M_plt
Atmosphere.PLANET_RADIUS = R_plt / 1.0e3 #km
#Defining the pressure profile
Atmosphere.edit_P(np.logspace(1, -7, Atmosphere.NP) * 101325.) # in Pa
Atmosphere.edit_H(np.linspace(0.,100.,Atmosphere.NP) * 1.0e3) # dummy height profile (it will be calculated hydrostatically)
#Defining the gaseous abundances
gasID = np.array([1,2,5,11,6, 9,23,26,39,40],dtype='int32') #H2O,CO2,CO,NH3,CH4,SO2,HCN,C2H2,H2(inactive),He(inactive)
isoID = np.zeros(len(gasID),dtype='int32')
abundances_active = np.array([1.0e-3, 1.0e-4, 1.0e-3, 1.0e-4, 1.0e-2, 1.0e-3, 1.0e-8, 1.0e-6])
abundance_inactive = 1. - np.sum(abundances_active)
h2_frac = 0.8547
h2_vmr = abundance_inactive * h2_frac ; he_vmr = abundance_inactive * (1. - h2_frac)
abundances = np.zeros(len(gasID))
abundances[0:len(abundances_active)] = abundances_active
abundances[-2] = h2_vmr
abundances[-1] = he_vmr
Atmosphere.NVMR = len(gasID)
Atmosphere.ID = gasID
Atmosphere.ISO = isoID
vmr = np.zeros((Atmosphere.NP,Atmosphere.NVMR))
vmr[:,:] = abundances[None,:]
Atmosphere.edit_VMR(vmr)
Atmosphere.AMFORM = 2 #Molecular weight calculated internally based on gaseous abundances
Atmosphere.calc_molwt()
#Calculating the temperature profile using the parameterisation of Parmentier and Guillot (2014)
k, g1, g2, alpha, beta = 1.0e-2, 1.0e1, 1.0e1, 0.5, 1.0
Atmosphere, xmap = ans.Models[43].calculate(Atmosphere,alpha,beta,k,g1,g2,T_star,R_star,SMA,T_int)
#Calculating altitudes based on hydrostatic equilibrium equation
Atmosphere.adjust_hydrostatH()
#Calculating the aerosols in the atmosphere (no clouds)
Atmosphere.NDUST = 1
dust = np.zeros((Atmosphere.NP,Atmosphere.NDUST)) #m-3
Atmosphere.edit_DUST(dust)
Atmosphere.assess()

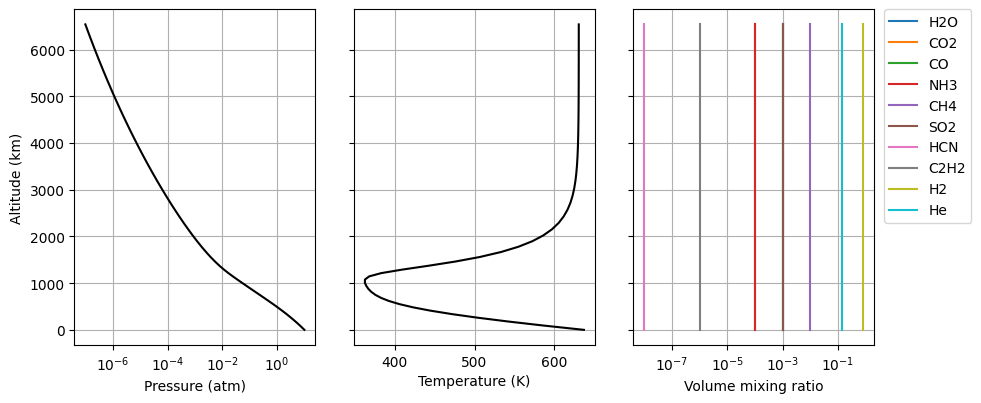

Atmosphere.plot_Atm()
Atmosphere.write_hdf5(runname)
1.2. Spectroscopy
[6]:
#Initialising spectroscopy class with ILBL = 0 (k-tables)
Spectroscopy = ans.Spectroscopy_0(ILBL=0)
Spectroscopy.NGAS = 8 #Number of radiatively active gases
specdir = '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/'
Spectroscopy.LOCATION = [specdir+'H2O_R1000.kta',
specdir+'CO2_R1000.kta',
specdir+'CO_R1000.kta',
specdir+'NH3_R1000.kta',
specdir+'CH4_R1000.kta',
specdir+'SO2_R1000.kta',
specdir+'HCN_R1000.kta',
specdir+'C2H2_R1000.kta']
#Reading the header information
Spectroscopy.read_header()
#Printing summary information
Spectroscopy.summary_info()
Spectroscopy.write_hdf5(runname)
WARNING :: read_header :: Spectroscopy_0.py-564 :: self.NGAS=8 self.LOCATION=PathRedirectList(['/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/H2O_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/CO2_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/CO_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/NH3_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/CH4_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/SO2_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/HCN_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/C2H2_R1000.kta'], redirects = {})
INFO :: summary_info :: Spectroscopy_0.py-233 :: Calculation type ILBL :: (<SpectralCalculationMode.K_TABLES: 0>, ' (k-distribution)')
INFO :: summary_info :: Spectroscopy_0.py-234 :: Number of radiatively-active gaseous species :: 8
INFO :: summary_info :: Spectroscopy_0.py-241 :: Gaseous species :: ['H2O', 'CO2', 'CO', 'NH3', 'CH4', 'SO2', 'HCN', 'H2O']
INFO :: summary_info :: Spectroscopy_0.py-243 :: Number of g-ordinates :: 20
INFO :: summary_info :: Spectroscopy_0.py-245 :: Number of spectral points :: 5119
INFO :: summary_info :: Spectroscopy_0.py-246 :: Wavelength range :: (0.3001500070095062, '-', 49.997337341308594)
INFO :: summary_info :: Spectroscopy_0.py-247 :: Step size :: 0.0003001391887664795
INFO :: summary_info :: Spectroscopy_0.py-249 :: Spectral resolution of the k-tables (FWHM) :: 0.0
INFO :: summary_info :: Spectroscopy_0.py-251 :: Number of temperature levels :: 27
INFO :: summary_info :: Spectroscopy_0.py-252 :: Temperature range :: (100.0, '-', 3400.0)
INFO :: summary_info :: Spectroscopy_0.py-254 :: Number of pressure levels :: 22
INFO :: summary_info :: Spectroscopy_0.py-255 :: Pressure range :: (1e-05, '-', 100.0)
1.3. Measurement
[8]:
#Initialising the class
Measurement = ans.Measurement_0()
Measurement.ISPACE = 1 #Wavelength (um)
Measurement.NGEOM = 1 #Number of geometries (just one spectrum)
Measurement.FWHM = 0.0 #Assuming no instrumental broadening
Measurement.IFORM = 1 #Flux ratio (F_planet/F_star)
#Defining the spectral range
vmin = 10. ; vmax = 40.
vconvx = Spectroscopy.WAVE[ (Spectroscopy.WAVE>=vmin) & (Spectroscopy.WAVE<=vmax) ]
nconvx = len(vconvx)
vconv = np.zeros((nconvx,Measurement.NGEOM))
vconv[:,0] = vconvx
Measurement.NCONV = np.zeros(Measurement.NGEOM,dtype='int32') + nconvx
Measurement.edit_VCONV(vconv)
Measurement.edit_MEAS(np.ones(vconv.shape)) #Dummy arrays for the measured spectrum since we are only simulating
Measurement.edit_ERRMEAS(np.ones(vconv.shape))

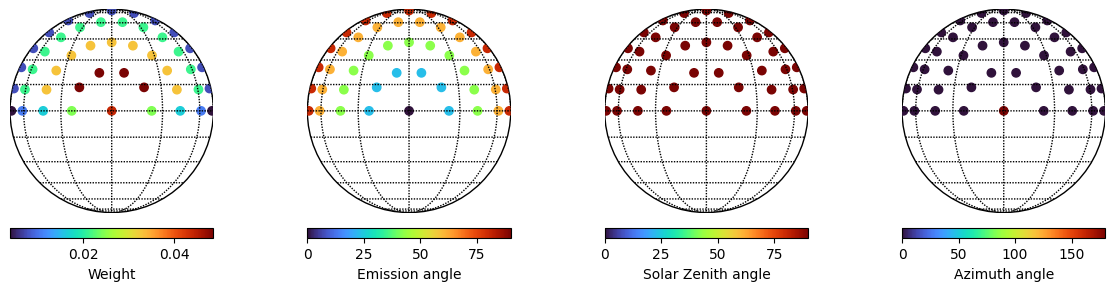

#Calculating averaging points for disc-integrated observations
Measurement.calc_avepoints_exoplanet(phase=0.,nmu=5)
Measurement.plot_fov()
#Writing information to file
Measurement.write_hdf5(runname)
1.4. Surface
[9]:
#Initialising and creating dummy surface class
Surface = ans.Surface_0()
Surface.GASGIANT = True #No surface
Surface.TSURF = 0.0
Surface.GALB = 0.0
Surface.LOWBC = 0
Surface.assess()
Surface.write_hdf5(runname)
1.5. Scatter
[10]:
Scatter = ans.Scatter_0()
Scatter.ISCAT = 0 #No scattering
#Now we initialise the arrays, but they won't be used since there are no aerosols in the atmosphere
Scatter.initialise_arrays(NDUST=1,NWAVE=2,NTHETA=5)
Scatter.WAVE = np.linspace(Spectroscopy.WAVE.min(),Spectroscopy.WAVE.max(),Scatter.NWAVE)
Scatter.assess()
Scatter.write_hdf5(runname)
1.6. CIA
[11]:
#Initialising the CIA class
CIA = ans.CIA_0()
#Indicating the name of the CIA file
CIA.CIATABLE = "exocia_hitran12_200-3800K.h5"
#Writing information to file
CIA.assess()
CIA.write_hdf5(runname)
1.7. Stellar spectrum
[12]:
#Initialising class
Stellar = ans.Stellar_0()
#Defining the planet-star distance
Stellar.DIST = SMA / AU #Star-Planet distance (AU)
#Writing the information into HDF5 file
Stellar.write_hdf5(runname,solfile='solar_noaa_wl_2024.txt')
1.8. Layering
[13]:
#Initialising class
Layer = ans.Layer_0()
Layer.NLAY = 31 #Number of atmospheric layers
Layer.LAYHT = 0.0 #Altitude of lowest layer in atmosphere
Layer.LAYINT = 1 #Curtis-Godson layer integration
Layer.LAYTYP = 1 #Layers divided by equal changes in log(pressure)
Layer.write_hdf5(runname)
1.9. Retrieval
[14]:
Retrieval = ans.OptimalEstimation_0(IRET=0)
Retrieval.NITER = -1 #Number of iterations
Retrieval.PHILIMIT = 0.1 #Convergence criterion
Retrieval.NCORES = 1 #Number of available cores
Retrieval.assess_input()
Retrieval.write_input_hdf5(runname)
1.10. Variables
[15]:
#Retrieving a scaling factor for the CO2 abundance
f = open(runname+".apr","w")
NVAR = 1
f.write("#Exoplanet example \n")
f.write(str(NVAR)+" \n")
f.write("2 0 2 \n")
f.write("1.0 0.5 \n")
f.close()

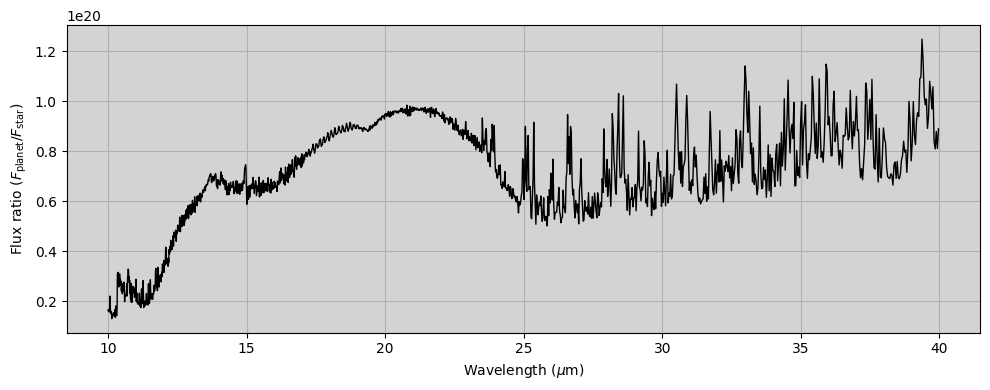

2. Running forward model
[16]:
#Reading the input files
Atmosphere,Measurement,Spectroscopy,Scatter,Stellar,Surface,CIA,Layer,Variables,Retrieval,Telluric = ans.Files.read_input_files_hdf5(runname)
WARNING :: read_hdf5 :: Layer_0.py-379 :: When reading file "exoplanet.h5", could not find element "Layer/BASEH" setting returned value to "None"
WARNING :: read_hdf5 :: Layer_0.py-380 :: When reading file "exoplanet.h5", could not find element "Layer/BASEP" setting returned value to "None"
WARNING :: read_hdf5 :: Layer_0.py-381 :: When reading file "exoplanet.h5", could not find element "Layer/TAUTOT" setting returned value to "None"
WARNING :: read_header :: Spectroscopy_0.py-564 :: self.NGAS=8 self.LOCATION=PathRedirectList(['/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/H2O_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/CO2_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/CO_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/NH3_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/CH4_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/SO2_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/HCN_R1000.kta', '/exomars/retrievals/nemesis/spectroscopy/Ktables/Exoplanets/Jake/R1000/C2H2_R1000.kta'], redirects = {})
INFO :: read_apr :: Variables_0.py-823 ::
Variables_0 :: read_apr :: varident [2 0 2]. Constructed model "Model2" (id=2)
INFO :: read_apr :: Variables_0.py-826 :: Model2:
|- id : 2
|- parent classes: PreRTModelBase
|- description: In this model, the atmospheric parameters are scaled using a
| single factor with respect to the vertical profiles in the
| reference atmosphere
|- n_state_vector_entries : 1
|- state_vector_slice : slice(0, 1, None)
|- state_vector_start : 0
|- target : 0
|- Parameters:
| |- scaling_factor :
| | |- slice : slice(0, 1, None)
| | |- unit : PROFILE_TYPE
| | |- description: Scaling factor applied to the reference profile
| | |- apriori value : 1.0
[17]:
ForwardModel = ans.ForwardModel_0(Atmosphere=Atmosphere,Surface=Surface,Measurement=Measurement,Spectroscopy=Spectroscopy,Stellar=Stellar,Scatter=Scatter,CIA=CIA,Layer=Layer,Variables=Variables,Telluric=Telluric)
ForwardModel.NCores = 10
SPECONV = ForwardModel.nemesisdiscfm()
INFO :: __init__ :: ForwardModel_0.py-255 :: Checking atmospheric gasses have spectroscopy data.
WARNING :: __init__ :: ForwardModel_0.py-302 :: Not all atmospheric gasses have spectroscopy data.
# WARNING #########################################################################
The following atmospheric gasses ARE NOT PRESENT in the spectroscopy data and WILL NOT CONTRIBUTE TO OPACITY:
C2H2 (id 26) isotopologue 0
H2 (id 39) isotopologue 0
He (id 40) isotopologue 0
To deactivate this warning place a path to a k-table file for these gasses in one of the following locations (depending upon your input file type):
[HDF5 Input]
In the "wasp121.h5" file, add an entry to "/Spectroscopy/LOCATION"
and update "/Spectroscopy/NGAS" appropriately.
[LEGACY Input]
Add an entry to the "wasp121.kls" file.
# END WARNING #####################################################################
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
WARNING :: __init__ :: AtmCalc_0.py-254 :: in AtmCalc_0.py file :: THERM requires BINBB disabled - resetting
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
INFO :: calculate_vertical_cia_opacity :: ForwardModel_0.py-3713 :: Calculating self.CIAX opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3782 :: CIRSrad :: Aerosol optical depths at (10.00189208984375, ' :: ', array([0.]))
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3800 :: Calculating TOTAL opacity
INFO :: calculate_layer_opacity :: ForwardModel_0.py-3817 :: CIRSradg :: Calculating TOTAL line-of-sight opacity
INFO :: CIRSrad :: ForwardModel_0.py-4149 :: CIRSrad :: IMODM = <PathCalc.THERMAL_EMISSION: 64>
INFO :: calculate_thermal_emission_spectrum :: ForwardModel_0.py-3873 :: CIRSradg :: Calculating THERMAL_EMISSION
[18]:
fig,ax1 = plt.subplots(1,1,figsize=(10,4))
ax1.plot(Measurement.VCONV[:,0],SPECONV,c='black',linewidth=1.)
ax1.grid()
ax1.set_xlabel('Wavelength ($\mu$m)')
ax1.set_ylabel('Flux ratio ($F_{\mathrm{planet}}/F_{\mathrm{star}}$)')
ax1.set_facecolor('lightgray')
plt.tight_layout()
